Renard Plus 32



Features

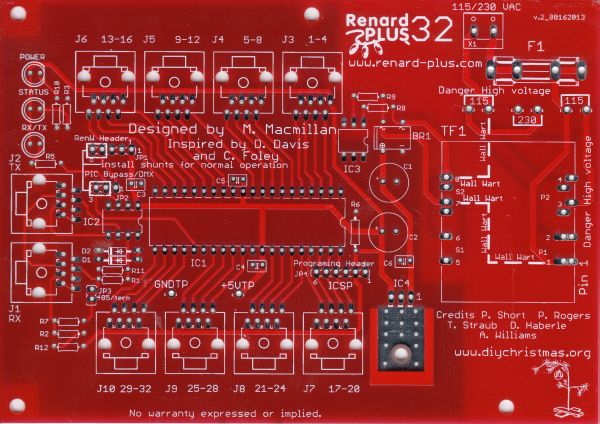

The Renard Plus 32 is a 32 channel controller designed to drive either AC SSRs or DC SSRs.

Specifications

  • Uses standard Renard protocol
  • 32 channel Renard controller
  • Uses standard RJ45 output jacks
  • Board powered with 110v
  • Xbee wireless capable using Dirknerkles Xbee Snap-in board
  • Always running LED status lights
  • Onboard ICSP headers for programming PIC's without having to remove the device
  • PIC Bypass
  • Onboard regulated power supply
  • Can also connect DC SSRs for larger output loads
  • The Renard Plus 32 board can be daisy chained with other Renard boards including most of the DIYC boards using standard RS485 RJ45 connections
  • Can be controlled using software such as Vixen
Supporting Documents and Files



 Renard Plus 32 Assembly Manual v2.00

 Renard Plus 32 Firmware 57600 PWM start address 1-24

 Renard Plus 32 Firmware 115200 PWM start address 1-24

 Renard Plus 32 MPLAB Project Source Code (07062012)

 Renard Plus 32 MPLAB Project Source Code with DMX (03082013)


We have put together a Tool Selection Guide that will help people new to this hobby find the most common tools used for building our boards. This guide also covers Soldering and parts identification
